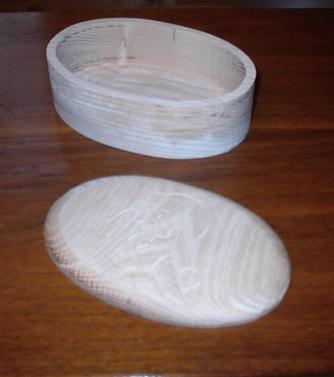

Simple CNC Project_4 Oval Box

How to Step by Step:

Lower half

1. Face Off the bottom of the stock

- Select a peice so it can be held in a vise or

clamped to the table

- Minimum 5.5in square block

2. Face off the top of the stock

3. Circular Pocket

- Cut the inside of the box

4. Circle Profile

- Cut the outside of the box

Box Lid

1. Circle Profile for the lip

2. Cirlce Profile for the outside diameter

Lid Jig

1. Face Off the stock of the jig

2. Circular Pocket to fit the inside diamater of the lip

3. Use one the free G-Codes (Santa or the Angel) to finish the top
